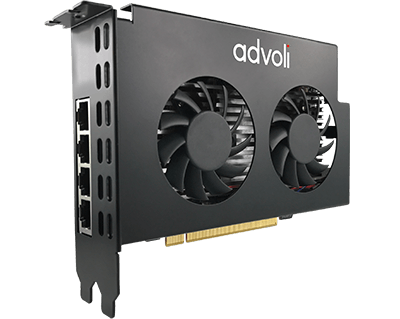

advoli TB4 Standard
4 FHD channels over 70 m / 229 ft
HDBaseT™ certified for cross compatibility with other HDBaseT products
The go-to entry-level Full High Definition (FHD) graphics card for professional HDBaseT audiovisual installations.
Built in bi-directional emulated controls (IR / RS232 / CEC), allowing you to avoid the cable mess found in extenders.
AMD Compact & Energy Friendly Embedded GPU
A modular HDBaseT™ graphics card that comes with ultra compact and low energy usage AMD Radeon™ E8860 MXM Module:
- Graphics Core Next (CGN) Architecture
- 10 Compute Units
- 768 Single precision GFLOPS (peak)
- 2GB GDDR5 Memory, 128-bit
- <37W GPU Thermal Design Power
- H.264/AVCHD, VC-1/WMV, MPEG-2, MVC, and MPEG-4/DivX formats
- AMD APP technology, OpenCL™ 1.2, DirectCompute
- Support for up to 4 outputs in FHD

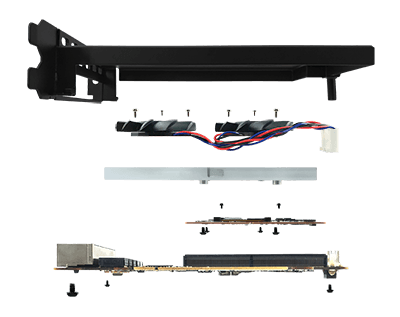

Designed to allow you to upgrade the AMD embedded module in the future without the need to purchase a whole new product from us.
Do you really need to increase the points of failure and increase the use of legacy electronic waste in your installations by using additional cables for RS232, CEC, IR in and IR out? With TB4 Standard, you do not need to, a single CAT cable does all of this including your Audio / Video needs.
Emulated controls giving you the IOT power over your displays and projectors.
TB4 Standard has Infrared (IR) and RS232: Encode and decode IR and RS232 signals through Serial Console. The power of a universal remote control and the power to sniff and read any incoming IR and RS232 signal, copy the signal, and send the signal back out. Emulation of any RC5 or CIRC IR commands.
Consumer Electronics Control (CEC): Encode and decode CEC signals through Serial Console. Can send raw command CEC strings, emulating any device. Auto responds to basic CEC commands with additional diagnostic mode that can capture and show full raw data and timing information.
Pass Through IR
If you do not want to use the emulated controls, but would like to use a remote control on the media server side to controls displays up to 70 meters / 229 feet away…
… control media players from the display side up to 70 meters / 229 feet away from the media server…
…. the advoli™ TB4 Standard Graphics Card has one IR input and one output port for an IR Blaster and an IR receiver.
CAT Cable Benefits
- Sending UHD (4K) video, audio and controls up to a distance of 40 meters / 131 feet, and 70 meters / 229 feet for FHD (1080P), not possible with most other competing standards
- Cheaper than other copper based cabling in general
- Lighter and more flexible than most other alternative cabling
- Usually much cheaper and easier to find when you need fire-proof and shielded cabling
- Easy to terminate on site during installation – not possible with most other audiovisual cables.
- Greater features not possible with competing audiovisual standards.
Half Length Graphics Card
The advoli™ TB4 Distance Graphics Card is designed to fit both smaller sized media servers with ITX form factor motherboards and large scale server motherboards. The advoli™ TB4 Distance Graphics Cards abides by the dimensions of the PCIe half length form factor:
L: 167 mm (175.26 mm) / 6.57 in (6.9 in)
H: 106 mm (106.68 mm) / 4.17 in (4.2 in)
W: 39 mm (40 mm) / 1.53 in (1.57 in)
Dual-width PCIe half length form factor specification in parenthesis.
The advoli™ TB4 Standard Graphics Card comes with HDBaseT™ diagnostic features: cable distance, signal quality and signal integrity for each twisted pair on CAT cable.
The graphics card is packed with environmental sensors/controls/information: voltages, temperature, fan speed, operational hour, power cycles and display/projector connectivity.
This gives the end user control over audiovisual installations all the way down to the displays, to more effectively and remotely diagnose problems reducing the need to send technicians on-site to determine the problem – saving costs.
With a future web-based interface, diagnosis and notification service, installation oversight can be fully automated ensuring higher up-time and faster fixes.
The advoli™ TB4 Standard Graphics Card comes with dual ball (double) bearing fans extending the lifespan of the fans and ensuring consistency in performance.
Having two double bearing fans allow for redundancy – should one fan fail the other will increase speed to compensate.
Both fans are set to operate at lower RPM to increase the life span of the fans and to increase with elevated temperatures of our on board temperature sensors.
Flexibility, Functionality and Performance
When designing the advoli™ TB4 Standard Graphics Card we had three core items in mind while driving for simplicity.
Flexibility – we wanted to ensure you were able to use your preferred processor brand in as many different types of motherboards as possible.
Functionality – we wanted to give you more power over your graphics card functionality, pushing IOT solutions and driving more functionality over one cable.
Performance – we wanted to ensure what we delivered was robust and could scale performance based on need. We tested a multitude of cooling solutions and found out our own custom design gave the best performance for our form factor.
4 x Full High Definition Channels
With the advoli™ TB4 Standard Graphics Card you can choose to drive:
4 independent FHD display walls
4 combined FHD desktops as one large stretched desktop (e.g. 4K by 2K)
4 independent FHD desktops
All over a distance of 70 meters / 229 feet per hop.
- 4 x FHD HDBaseT channels that can drive 4 unique or cloned video content over 70 meters / 229 feet.
- HDBaseT Certified product
- Built in HDBaseT & Environmental Diagnostics
- Modular for easy future upgrades
- Emulated bi-directional controls for Infrared, CEC and RS232
- Half length & Dual-width Graphics Card
Minimum System Requirements
- PCI Express-compliant motherboard with minimum one available dual-width x16 graphics slot
- One available 6-pin PCI Express supplementary power connector
- 450W or greater system power supply, assuming 160W spare power for Graphics Card.
- 1GB of available hard-disk space
- 4GB system memory (8GB or higher recommended)
- Windows 7-10 or Linux
- Internet connection to download drivers
In The Box
- advoli TB4 Standard Graphics Card
- AMD Embedded E8860 MXM
- USB 9-pin connector
- USB 2.0 to 3.0 adapter board
- Quick Installation Guide
|Max Distance CAT5e/CAT6||1080p 60Hz @ 65m
UHD 30Hz @ 35m
|Max Distance CAT6a/CAT7||1080p 60Hz @ 70m
UHD 30Hz @ 40m
Data may be updated in the future based on new cable testing.
|# of HDBaseT Tx Channels||4 x RJ45 Connectors|
|HDCP 1.4 / 2.2||Compatible pass through|
|HDMI 1.4 / 2.0||Compatible pass through
300 MHz Pixel Clock Limitation
|Resolution||4K DCI 4096×2160 24Hz/25Hz/30Hz
FHD 1080p 23.98Hz/24Hz/25Hz/29.97Hz/30Hz/50Hz/59.94Hz/60Hz
576p, 576i, 480p, 480i
|Max Resolution with all channels active||4 x 1080p 60Hz
|Color Space||YUV, RGB|
|Chroma Subsampling||4:4:4, 4:2:2
|Color Depth||8-bit, 10-bit, 12-bit|
|Pass-Through||All formats supported by HDMI 1.4 and HDMI 2.0
All major digital audio formats, including: Dolby Digital, DTS, Dolby TrueHD,
DTS HD-Master Audio, Dolby Pro Logic Iiz 7.1 & 9.1,
|GRAPHICS / MXM|
|Model||AMD™ Embedded E8860|
|Desktop Software provided by AMD™||AMD™ Eyefinity™|
|Driver provided by AMD™||Win 10 – 64 Bit
Win 8.1 – 64 Bit
Win 8.1 – 32 Bit
Win 8 – 64 Bit
Win 8 – 32 Bit
Win 7 – 64 Bit
Win 7 – 32 Bit
|Architecture||Graphics Core Next (CGN)™|
|Video Control||Direct GMA™|
|Compute Units||768 GFLOPS|
|Memory||2GB GDDR5. 128 bit wide|
|Video Encode/Decode||UVD4 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode|
|Projector Edge Blend||Available through Third Party Software|
|Display Bezel Correction||AMD™ Eyefinity™|
|Infrared||External IR Receiver Type A – 3 Pin Audio Jack Connector
External IR Transmitter Type A – 3 Pin Audio Jack Connector
Emulated IR IN/OUT – RAW Data
|RS232||External In/Out – 3 Pin Audio Jack Connector
Emulated Serial Port IN/OUT (Virtual COM port) max baud rate: 115,200 bps
|CEC Compatible||Pass through|
|EDID Management||Raw EDID pass through|
|Fansink||Aluminium with 2 dual ball bearing fans|
|Dimensions||L: 167mm H: 106mm W: 39mm L: 6.57in H: 4.17in W: 1.54in|
|Weight||356g +/- 10g
12.56oz +/- 0.35 oz
|Form Factor||Half-length, dual width Graphics Card|
|Ambient Operating Temperature||0°C to 40°C / 32°F to 104°F|
|Storage Temperature||-20°C to 60°C / -4°F to 140°F|
|Humidity||20 to 90% non-condensing|
|Australia & New Zealand||C-Tick|
