advoli TB6 Standard

6 FHD channels over 70 m / 229 ft

HDBaseT™ certified for cross compatibility with other HDBaseT products


The go-to Full High Definition (FHD) graphics card for professional HDBaseT audiovisual installations.


Built in bi-directional emulated controls (IR / RS232 / CEC), allowing you to avoid the cable mess found in extenders.

Enquiry / More Info

AMD Compact & Energy Friendly Embedded GPU

A modular HDBaseT™ graphics card that comes with ultra compact and low energy usage AMD Radeon™ E8860 MXM Module:


  • Graphics Core Next (CGN) Architecture
  • 10 Compute Units
  • 768 Single precision GFLOPS (peak)
  • 2GB GDDR5 Memory, 128-bit
  • <37W GPU Thermal Design Power
  • H.264/AVCHD, VC-1/WMV, MPEG-2, MVC, and MPEG-4/DivX formats
  • AMD APP technology, OpenCL™ 1.2, DirectCompute
  • Support for up to 6 outputs in FHD


Designed to allow you to upgrade the AMD embedded module in the future without the need to purchase a whole new product from us.

Supported MXM Modules

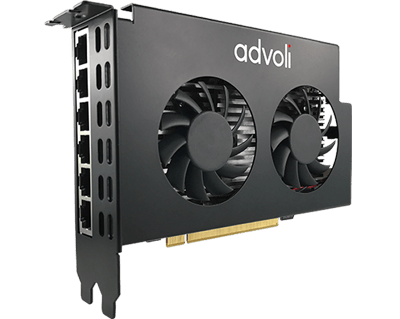

advoli TB6 Standard HDBaseT Graphics Card
Advoli TA6 Emulated Controls

Emulated Controls

Do you really need to increase the points of failure and increase the use of legacy electronic waste in your installations by using additional cables for RS232, CEC, IR in and IR out? With TB6 Standard, you do not need to, a single CAT cable does all of this including your Audio / Video needs.


Emulated controls giving you the IOT power over your displays and projectors.


TB6 Standard has Infrared (IR) and RS232: Encode and decode IR and RS232 signals through Serial Console. The power of a universal remote control and the power to sniff and read any incoming IR and RS232 signal, copy the signal, and send the signal back out. Emulation of any RC5 or CIRC IR commands.


Consumer Electronics Control (CEC): Encode and decode CEC signals through Serial Console. Can send raw command CEC strings, emulating any device. Auto responds to basic CEC commands with additional diagnostic mode that can capture and show full raw data and timing information.

Pass Through IR

World’s first graphics card with pass through IR.


If you do not want to use the emulated controls, but would like to use a remote control on the media server side to controls displays up to 70 meters / 229 feet away…




… control media players from the display side up to 70 meters / 229 feet away from the media server…


…. the advoli™ TB6 Standard Graphics Card has one IR input and one output port for an IR Blaster and an IR receiver.

Advoli TA6 IR Pass Through
Advoli HDBaseT CAT Cable

CAT Cable Benefits

  1. Sending UHD (4K) video, audio and controls up to a distance of 40 meters / 131 feet, and 70 meters / 229 feet for FHD (1080P), not possible with most other competing standards
  2. Cheaper than other copper based cabling in general
  3. Lighter and more flexible than most other alternative cabling
  4. Usually much cheaper and easier to find when you need fire-proof and shielded cabling
  5. Easy to terminate on site during installation – not possible with most other audiovisual cables.
  6. Greater features not possible with competing audiovisual standards.

Half Length Graphics Card

The advoli™ TB6 Distance Graphics Card is designed to fit both smaller sized media servers with ITX form factor motherboards and large scale server motherboards. The advoli™ TB6 Distance Graphics Cards abides by the dimensions of the PCIe half length form factor:


L: 167 mm (175.26 mm) / 6.57 in (6.9 in)
H: 106 mm (106.68 mm) / 4.17 in (4.2 in)
W: 39 mm (40 mm) / 1.53 in (1.57 in)


Dual-width PCIe half length form factor specification in parenthesis.

Advoli HDBaseT Diagnostics Console


The advoli™ TB6 Standard Graphics Card comes with HDBaseT™ diagnostic features: cable distance, signal quality and signal integrity for each twisted pair on CAT cable.


The graphics card is packed with environmental sensors/controls/information: voltages, temperature, fan speed, operational hour, power cycles and display/projector connectivity.


This gives the end user control over audiovisual installations all the way down to the displays, to more effectively and remotely diagnose problems reducing the need to send technicians on-site to determine the problem – saving costs.


With a future web-based interface, diagnosis and notification service, installation oversight can be fully automated ensuring higher up-time and faster fixes.

Cooling Redundancy

The advoli™ TB6 Standard Graphics Card comes with dual ball (double) bearing fans extending the lifespan of the fans and ensuring consistency in performance.


Having two double bearing fans allow for redundancy – should one fan fail the other will increase speed to compensate.


Both fans are set to operate at lower RPM to increase the life span of the fans and to increase with elevated temperatures of our on board temperature sensors.

Advoli Cooling Redundancy

Flexibility, Functionality and Performance

When designing the advoli™ TB6 Standard Graphics Card we had three core items in mind while driving for simplicity.


Flexibility – we wanted to ensure you were able to use your preferred processor brand in as many different types of motherboards as possible.


Functionality – we wanted to give you more power over your graphics card functionality, pushing IOT solutions and driving more functionality over one cable.


Performance – we wanted to ensure what we delivered was robust and could scale performance based on need. We tested a multitude of cooling solutions and found out our own custom design gave the best performance for our form factor.

6 x Full High Definition Channels

With the advoli™ TB6 Standard Graphics Card you can choose to drive:


6 independent FHD display walls


6 combined FHD desktops as one large stretched desktop (e.g. 6K by 2K)


6 independent FHD desktops


All over a distance of 70 meters / 229 feet per hop.

Advoli Enormous Resolution Display Wall

Key Features

  • 6 x FHD HDBaseT channels that can drive 6 unique or cloned video content over 70 meters / 229 feet.
  • HDBaseT Certified product
  • Built in HDBaseT & Environmental Diagnostics
  • Modular for easy future upgrades
  • Emulated bi-directional controls for Infrared, CEC and RS232
  • Half length & Dual-width Graphics Card

Minimum System Requirements

  • PCI Express-compliant motherboard with minimum one available dual-width x16 graphics slot
  • One available 6-pin PCI Express supplementary power connector
  • 450W or greater system power supply, assuming 160W spare power for Graphics Card.
  • 1GB of available hard-disk space
  • 4GB system memory (8GB or higher recommended)
  • Windows 7-10 or Linux
  • Internet connection to download drivers

In The Box

  • advoli TB6 Standard Graphics Card
  • AMD Embedded E8860 MXM
  • USB 9-pin connector
  • USB 2.0 to 3.0 adapter board
  • Quick Installation Guide
Max Distance CAT5e/CAT6 1080p 60Hz @ 60m
UHD 30Hz @ 35m
Max Distance CAT6a/CAT7 1080p 60Hz @ 70m
UHD 30Hz @ 40m

Data may be updated in the future based on new cable testing.

# of HDBaseT Tx Channels 6 x RJ45 Connectors
HDCP 1.4 / 2.2 Compatible pass through
HDMI 1.4 / 2.0 Compatible pass through
300 MHz Pixel Clock Limitation
3D Supported
Resolution 4K DCI 4096×2160 24Hz/25Hz/30Hz
3840×2160 24Hz/25Hz/30Hz
FHD 1080p 23.98Hz/24Hz/25Hz/29.97Hz/30Hz/50Hz/59.94Hz/60Hz
1080i 50Hz/59.94Hz/60Hz
720p 50Hz/59.94Hz/60Hz
576p, 576i, 480p, 480i
Max Resolution with all channels active 6 x 1080p 60Hz
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2
Color Depth 8-bit, 10-bit, 12-bit
Pass-Through All formats supported by HDMI 1.4 and HDMI 2.0
All major digital audio formats, including: Dolby Digital, DTS, Dolby TrueHD,
DTS HD-Master Audio, Dolby Pro Logic Iiz 7.1 & 9.1,
Model AMD™ Embedded E8860
MXM Type A
Desktop Software provided by AMD™ AMD™ Eyefinity™
Driver provided by AMD™ Win 10 – 64 Bit
Win 8.1 – 64 Bit
Win 8.1 – 32 Bit
Win 8 – 64 Bit
Win 8 – 32 Bit
Win 7 – 64 Bit
Win 7 – 32 Bit
Linux x86_64
Linux x86
Architecture Graphics Core Next (CGN)™
Video Control Direct GMA™
Compute Units 768 GFLOPS
Memory 2GB GDDR5. 128 bit wide
GPU Power 50W
Video Encode/Decode UVD4 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode
Projector Edge Blend Available through Third Party Software
Display Bezel Correction AMD™ Eyefinity™
Diagnostics HDBaseT™
 Cable Diagnostics
Electrical Diagnostics
Infrared External IR Receiver Type A – 3 Pin Audio Jack Connector
External IR Transmitter Type A – 3 Pin Audio Jack Connector
Emulated IR IN/OUT – RAW Data
RS232 External In/Out – 3 Pin Audio Jack Connector
Emulated Serial Port IN/OUT
(Virtual COM port)
max baud rate: 115,200 bps
CEC Compatible Pass through
EDID Management Raw EDID pass through
Ethernet No
Frame Lock No
Genlock No
Fansink Aluminium with 2 dual ball bearing fans
Dimensions L: 167mm H: 106mm W: 39mm
L: 6.57in H: 4.17in W: 1.54in
Weight 356g +/- 10g
12.56oz +/- 0.35 oz
Form Factor Half-length, dual width Graphics Card
Ambient Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature -20°C to 60°C / -4°F to 140°F
Humidity 20 to 90% non-condensing
United States FCC
Canada IC
Europe CE
Japan VCCI
Australia & New Zealand C-Tick
HDBaseT Certified

Third party testing lab completed, submitting documents to each regulatory body.

Product Specification

A dive into the technical performance, functionality and dimensions of the HDBaseT™ Certified advoli™ TB6 Standard Graphics Card.
